Vacuum Pressure Impregnated With On Load Tap Chager(OLTC)

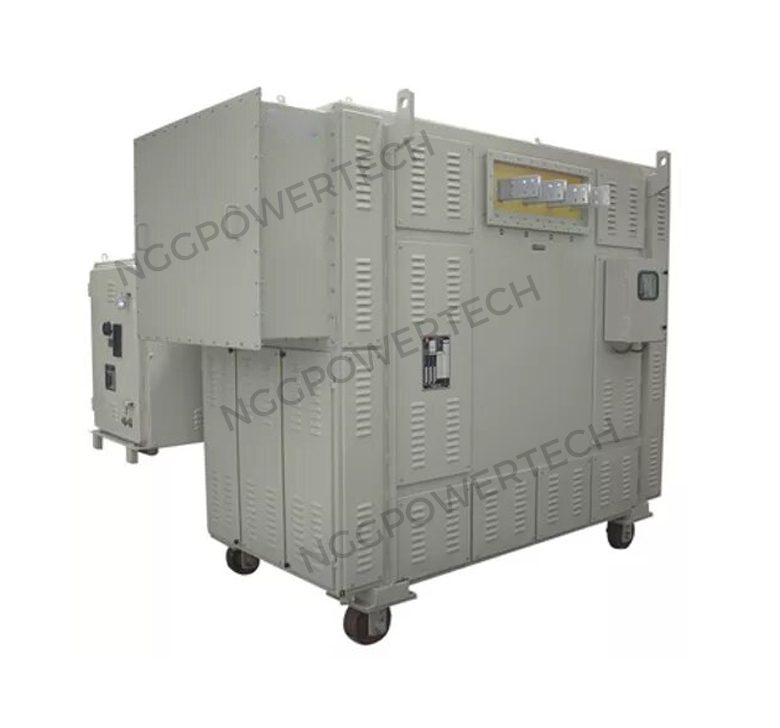

NGG Power Tech offer technologically advanced range of Dry Type VPI (Vacuum Pressure Impregnated) Transformers with On Load Tap Changer (up to 4000 KVA in 11 KV/22KV/33KV Class.), using PRIME CRGO M3, M4, MOH or better Lamination and Electrolytic Grade 99.9% pure copper. These transformers are designed for trouble-free performance, confirming to IS 2026/11171, IEC 76/726 with low power loss and low noise. Use of modern manufacturing techniques and optimum utilization of active materials ensures cost effectiveness, reliability and a long trouble-free performance.

NGG Power Tech Ventilated Dry Type Transformer are fitted in enclosure for Indoor installations and are totally maintenance free and safe from fire as the material used is metal, ceramic and NOMEX. It is environment friendly as there is no oil, hence handling becomes easier and there are no chance of spillages and leakage and there is minimal nontoxic smoke in case of fire. Use of Class ‘F’ / ‘H’ insulation increases the heat bearing capacity and enables the use of the transformer in humid and chemically polluted atmosphere also.

APPLICATIONS

Fire safety and environmental aspects are of increasing importance. The substitution of oil filled transformers by dry type transformers is one of the most important steps towards it. VPI Dry Transformer is used when it has to be located near load centre and in a fire hazardous place. Special type of fire resistant insulation is used for the windings, thus reducing the fire risk considerably.

STANDARD SPECIFICATIONS

Capacity	–	Up to 4000 KVA
No. of Phases	–	3 Phase
Frequency	–	50 Hz.
Voltage Range	–	11 kV/22kV/33kV
Tapping	–	+ 5% To -15% Taps on H.T. Side in steps of 1.25% each or as customer required.
Insulation	–	Class ‘F’/ ‘H’
Vector Group	–	Dyn 11
Duty Cycle	–	Continuous
Winding	–	Copper Wound
Terminals	–	As per required

STANDARD FITTINGS FOR DRY TYPE TRANSFORMERS

Winding temperature Indicator	–	Cable Box on H.V./ L.V. side
Lifting Lugs	–	Uni directional rollers
Enclosure with cooling mesh/louvers.	–	On Load Tap Changer

ADVENTAGES

Vacuum Impregnated Dry Type Distribution Transformer.
3 phase, 50 Hz, 11kv/433v.
Reduced maintenance cost
Off-circuit tap links to provide +5% to -10% taps in steps of 2.5%.
On Load Tap Changer to provide +5% to -15% taps in steps of 1.25%.
Class F/H insulated.
Vector group Dyn11.
Continuous duty.
Copper wound.
HV side cable box.
LV side cable box/bus duct.
Painting as per IS -5 specification.
Standard fittings.
Rating and diagram plate.
Lifting lugs.
Off-circuit tap links/air Insulated on-load tap changer.
Enclosure with cooling mesh/louvers.

FEATURES

Designed for 25 years of trouble free performance
Design conforms to IS 2026/11171, IEC 76/726 and other international standards
Low power loss and low noise
Designed to withstand electric impulses, thermal and dynamic stresses
Optimum utilization of active materials for compactness
Modern manufacturing techniques ensure cost effectiveness and reliability
Installation close to center of load and consumption thereby saving expensive LT cable and thus avoiding voltage drop and power loss
Averts fire and prevents it from spreading

OPTIONAL ACCESSORIES

Winding temperature scanner with alarm and trip contact
Forced ventilation
Low power loss and low noise
Remote tap changer control cubicle for OLTC transformers
Neutral current transformer
