- Dual Ratio Transformers
- Rectifier Transformers
- Isolation Transformers
- Reactor Transformers
- Earthing Transformers
- LT – LT Transformers
- Dual Secondary Transformer for Solar PV Application
- Package Sub Station Transformer with RMU & LVDB
- Converter Duty Transformer for DC & AC drives
- Harmonic Mitigating Transformer for containing harmonic levels
- Furnace transformer specially for furnace industry
- Booster Transformer for Metro Rail Corp.
- Auxiliary Transformer specially used for Railways & Power Substation
- Other customized designs…

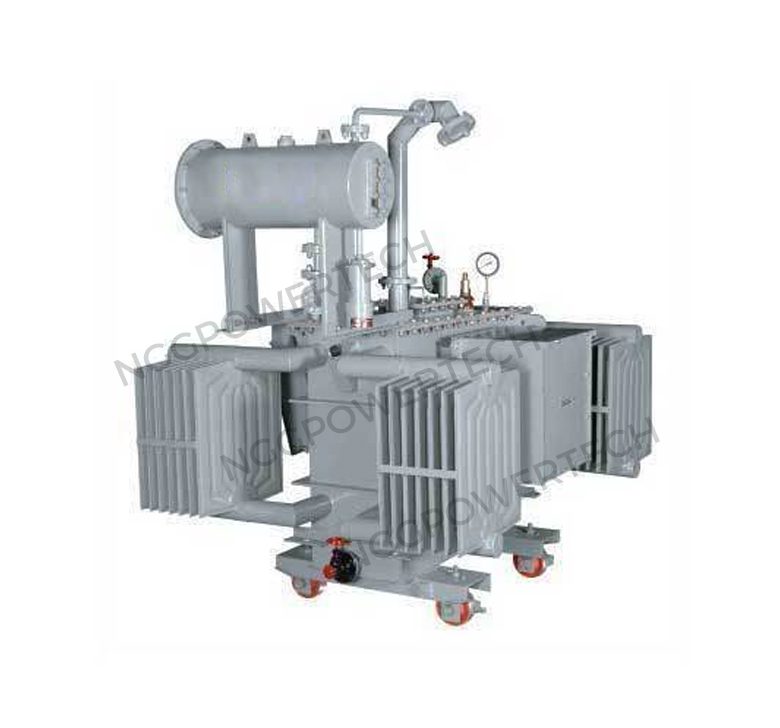

NGG designs and manufactures custom designed special transformers for industrial and power applications. We offer customized maintenance and service solutions for transformers with state-of-the-art machinery & equipment and testing facilities.In NGG each transformer is designed as a new product and customized to comply with specific customer requirements. The NGG Designing & engineering team covers the complete design of a transformer, from designing of core and coils to the tank and the supporting structures with proper cooling system and full protection.
Transformer engineering begins from electromagnetic and thermal design of core and windings. This activity is performed by means of standardized calculation sheets developed by our Design Department over the years. 2D and 3D FEM software tools are used for particular studies, such as: short-circuit impedances of phase-shifted multi-winding transformers, eddycurrent and stray losses calculation due to harmonics, hot-spots calculation and localization on windings and carpentry, mechanical stresses due to short-circuit, insulation assessment.
Transformer mechanical design is carried out using 3D software tools allowing dimensions optimization, mechanical stress evaluation and taking into account special external conditions (Seismic Zone, Low Noise Level).
Each transformer is supplied with a set of basic documents describing its features and functionalities, such as fabrication drawings, HV/LV connection drawings, auxiliary circuit / schematic wiring diagrams, cooling system drawings, user’s manual
